| Performance | Maximum Payload | 3,800 kg |
|---|---|---|
| Travel Speed (High/Low) | 10 / 7 km/h | |
| Ground Pressure (Empty/Loaded) | 24.8 / 46.4 kPa | |
| Machine Dimension and Weight | Operating Weight | 4,400 kg |
| Overall Length | 3,780 mm | |
| Overall Width | 1,950 mm | |
| Overall Height | 3,250 mm | |
| Minimum Ground Clearance | 350 mm | |
| Crawler Width | 500 mm | |
| Dump Body | Dump Shape | Drop side dump bed |
| Length x Width x Height | 2,150 x 1,700 x 360 mm | |
| Dump Capacity (Struck/Heaped) | – | |
| Engine | Name | KUBOTA V3307 |
| Nominal Output | 55 kW / 2,200rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 75 ℓ |
| Hydraulic Oil Tank Capacity | 58 ℓ | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | – |
| Name and Type of Specified prime mover | – | |
| Emission Standard | Tier 4 Interim / EU Stage IIIA |
| Performance | Maximum Payload | 8,378 lbs |
|---|---|---|
| Travel Speed (High/Low) | 6.2/4.3 mph | |
| Ground Pressure (Empty/Loaded) | 3.6/6.7 psi | |
| Machine Dimension and Weight | Operating Weight | 9,700 lbs |
| Overall Length | 12’5″ | |
| Overall Width | 6’5″ | |
| Overall Height | 10’7″ | |
| Minimum Ground Clearance | 14″ | |
| Crawler Width | 20″ | |
| Dump Body | Dump Shape | Drop side dump bed |
| Length x Width x Height | 7’1″ x 5’7″ x 1’2″ | |
| Dump Capacity (Struck/Heaped) | – | |
| Engine | Name | KUBOTA V3307 |
| Nominal Output | 75 HP / 2,200 rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 19.8 gal (US) |
| Hydraulic Oil Tank Capacity | – | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | – |
| Name and Type of Specified prime mover | – | |
| Emission Standard | Tier 4 Interim / EU Stage IIIA |

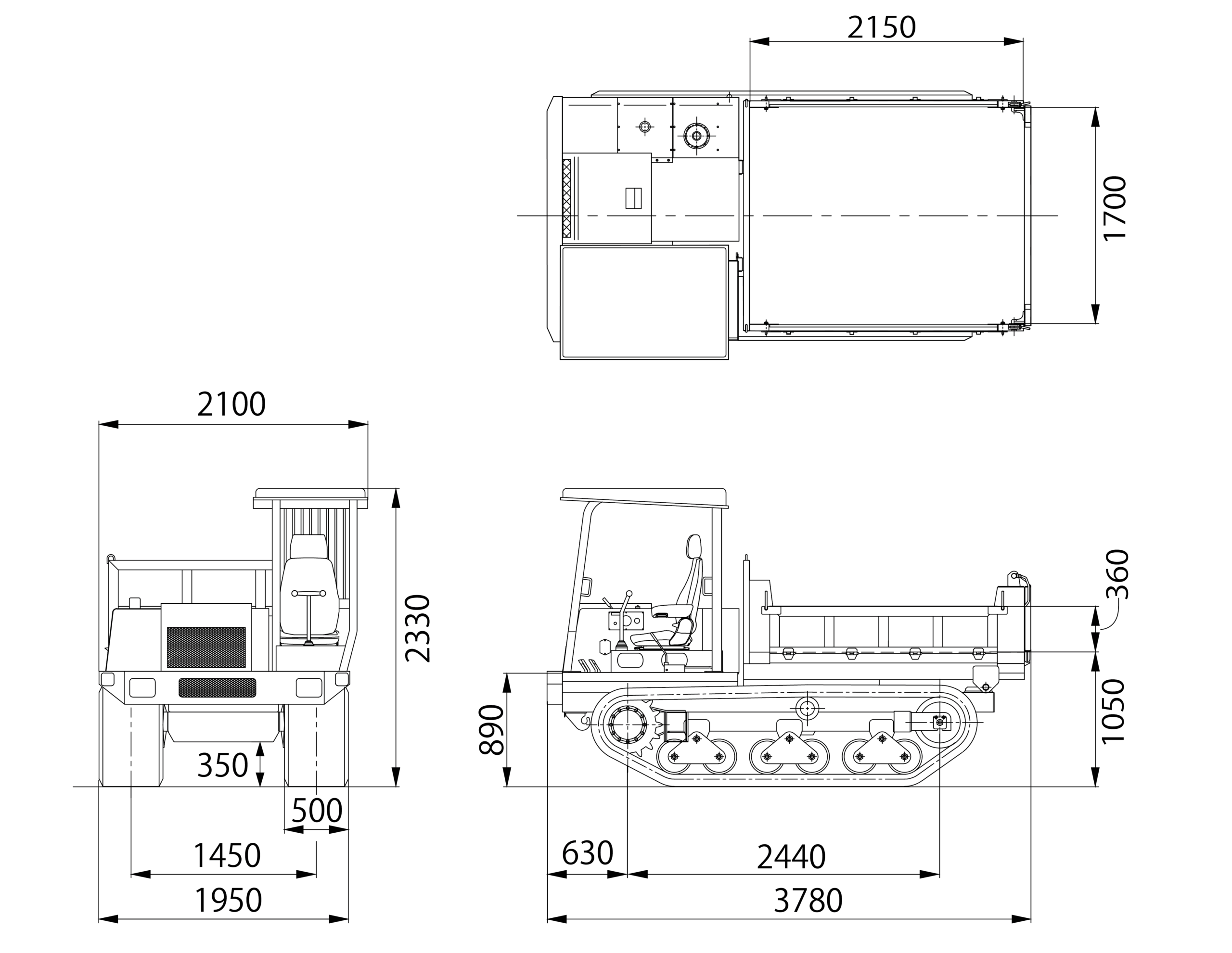

Dimensions
Downloads SPEC SHEET DOWNLOAD
Feature

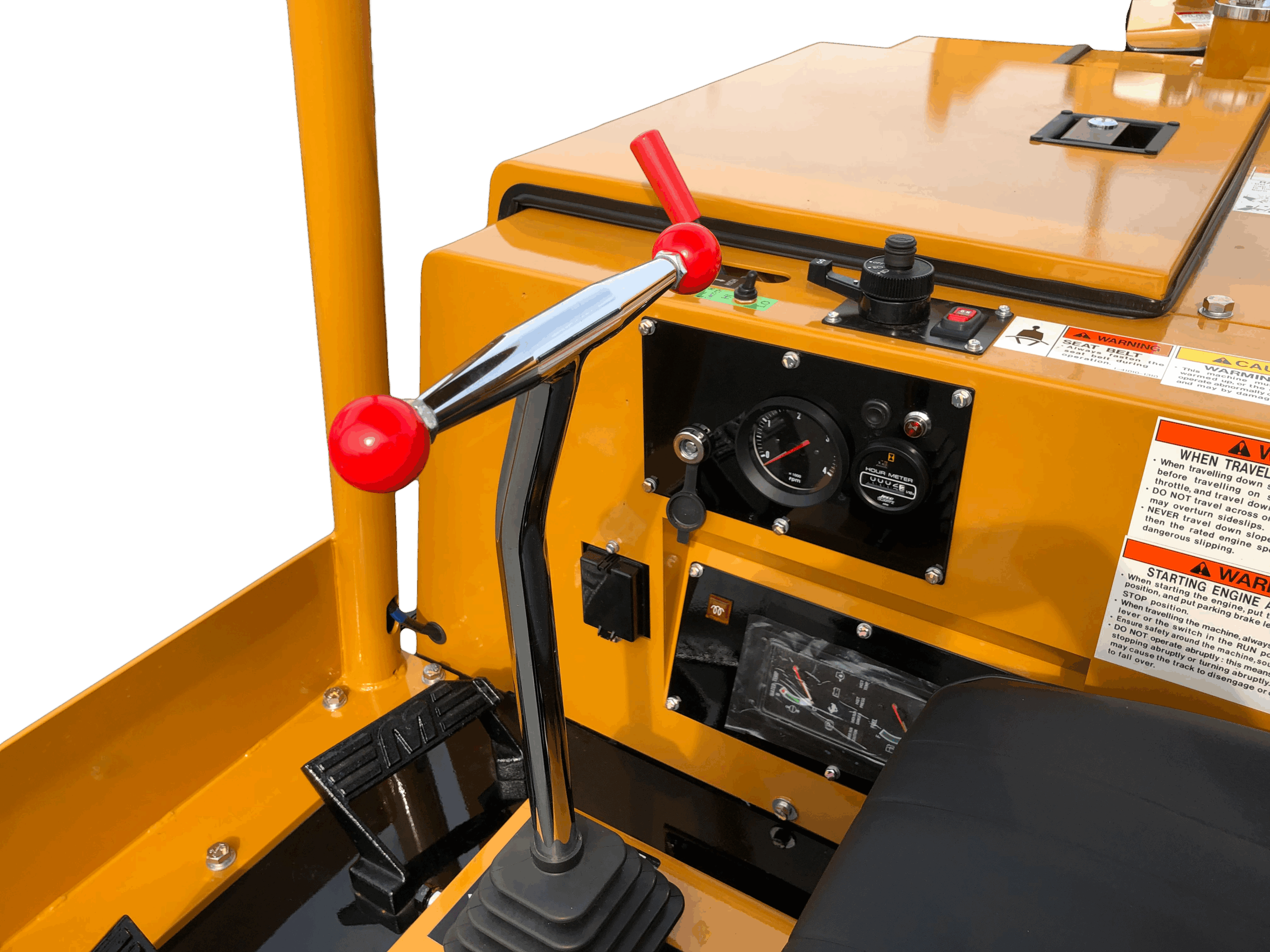

Effortless Control for Maximum Efficiency
The simple travel lever enables intuitive operation and contributes to achieving highly efficient work.

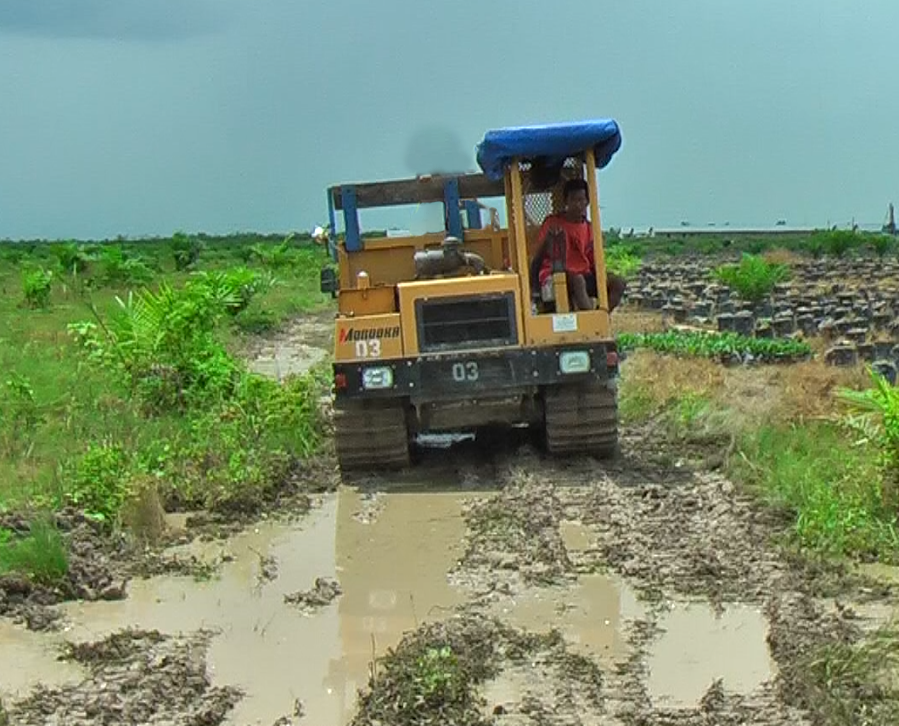

High Off-Road Capability for Efficient Transport
The durable rubber crawlers provide excellent traction on rough terrain, enabling smooth transport of heavy loads even in challenging environments.

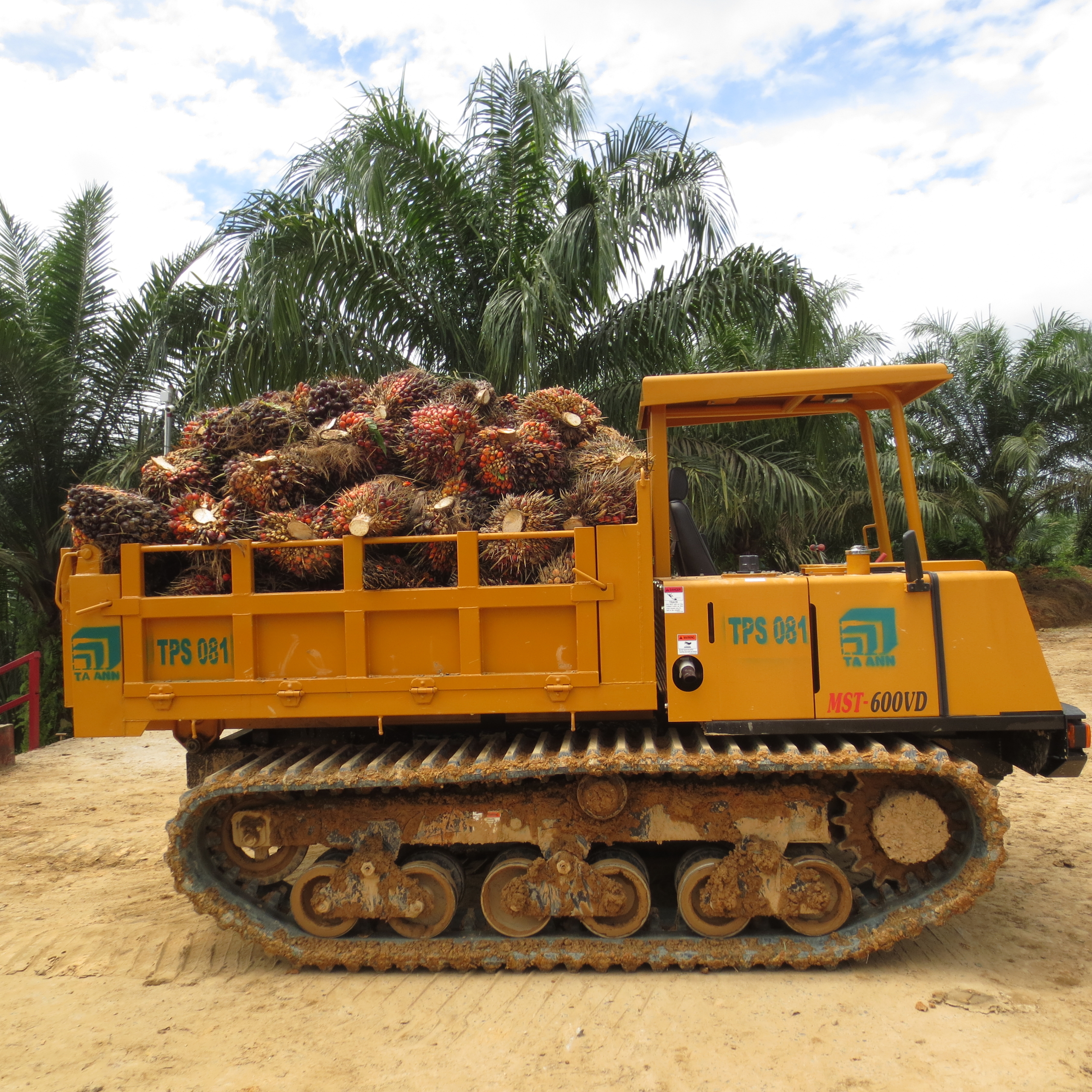

Large Dump Bed for Increased Load Capacity
The spacious dump bed allows for transporting larger volumes of material in a single trip, reducing downtime and improving efficiency.
Durable mechanical KUBOTA engine
Equipped with a durable and easy – to – maintain Kubota engine that requires no urea or DPF, featuring a mechanical system.
Maintenance

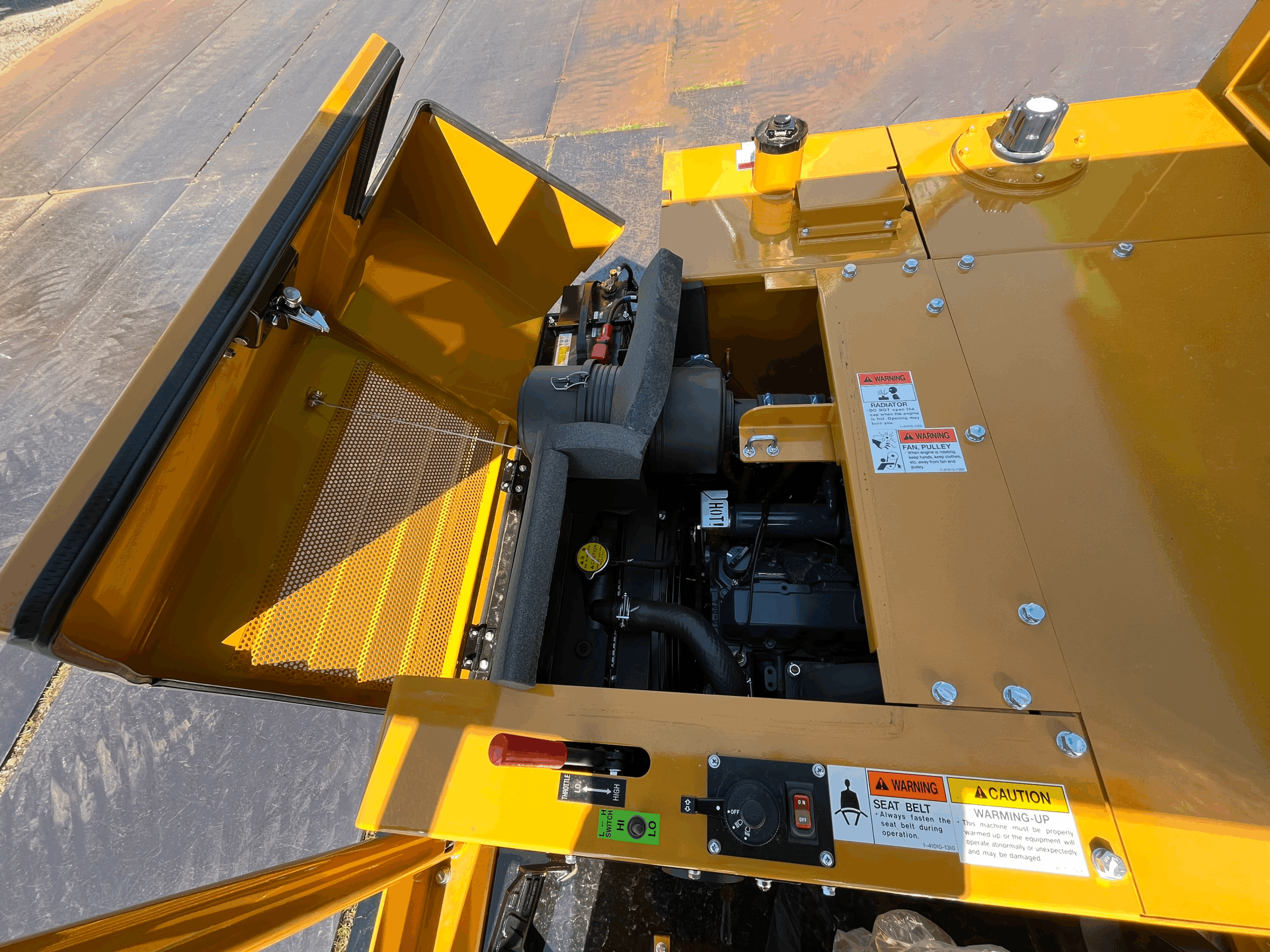

Easy Access to daily inspection and maintenace area
The engine, battery compartment, and fuel ports are strategically positioned for easy access, ensuring superior daily inspections and maintenance efficiency.
