| Performance | Maximum Payload | 3,000 kg |
|---|---|---|
| Travel Speed (High/Low) | 8.1 / 5.7 km/h | |
| Ground Pressure (Empty/Loaded) | 19.1 / 40.7 kPa | |
| Machine Dimension and Weight | Operating Weight | 2,705 kg |
| Overall Length | 3,195 mm | |
| Overall Width | 1,740 mm | |
| Overall Height | 2,355 mm | |
| Minimum Ground Clearance | 260 mm | |
| Crawler Width | 350 mm | |
| Dump Body | Dump Shape | Drop side dump bed |
| Length x Width x Height | 1,700 x 1,420 x 370 mm | |
| Dump Capacity (Struck/Heaped) | – | |
| Engine | Name | KUBOTA V2203 |
| Nominal Output | 35.4 kW / 2,800rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 46 ℓ |
| Hydraulic Oil Tank Capacity | – | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | – |
| Name and Type of Specified prime mover | – | |
| Emission Standard | Tier 4 Interim / EU Stage IIIA |
| Performance | Maximum Payload | 6,614 lbs |
|---|---|---|
| Travel Speed (High/Low) | 5/3.5 mph | |
| Ground Pressure (Empty/Loaded) | 2.8/5.9 psi | |
| Machine Dimension and Weight | Operating Weight | 5,964 lbs |
| Overall Length | 10’6″ | |
| Overall Width | 5’9″ | |
| Overall Height | 7’9″ | |
| Minimum Ground Clearance | 10″ | |
| Crawler Width | 14″ | |
| Dump Body | Dump Shape | Drop side dump bed |
| Length x Width x Height | 5’7″ x 4’8″ x 1’3″ | |
| Dump Capacity (Struck/Heaped) | – | |
| Engine | Name | KUBOTA V2203 |
| Nominal Output | 48 HP / 2,800 rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 12.2 gal (US) |
| Hydraulic Oil Tank Capacity | – | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | – |
| Name and Type of Specified prime mover | – | |
| Emission Standard | Tier 4 Interim / EU Stage IIIA |

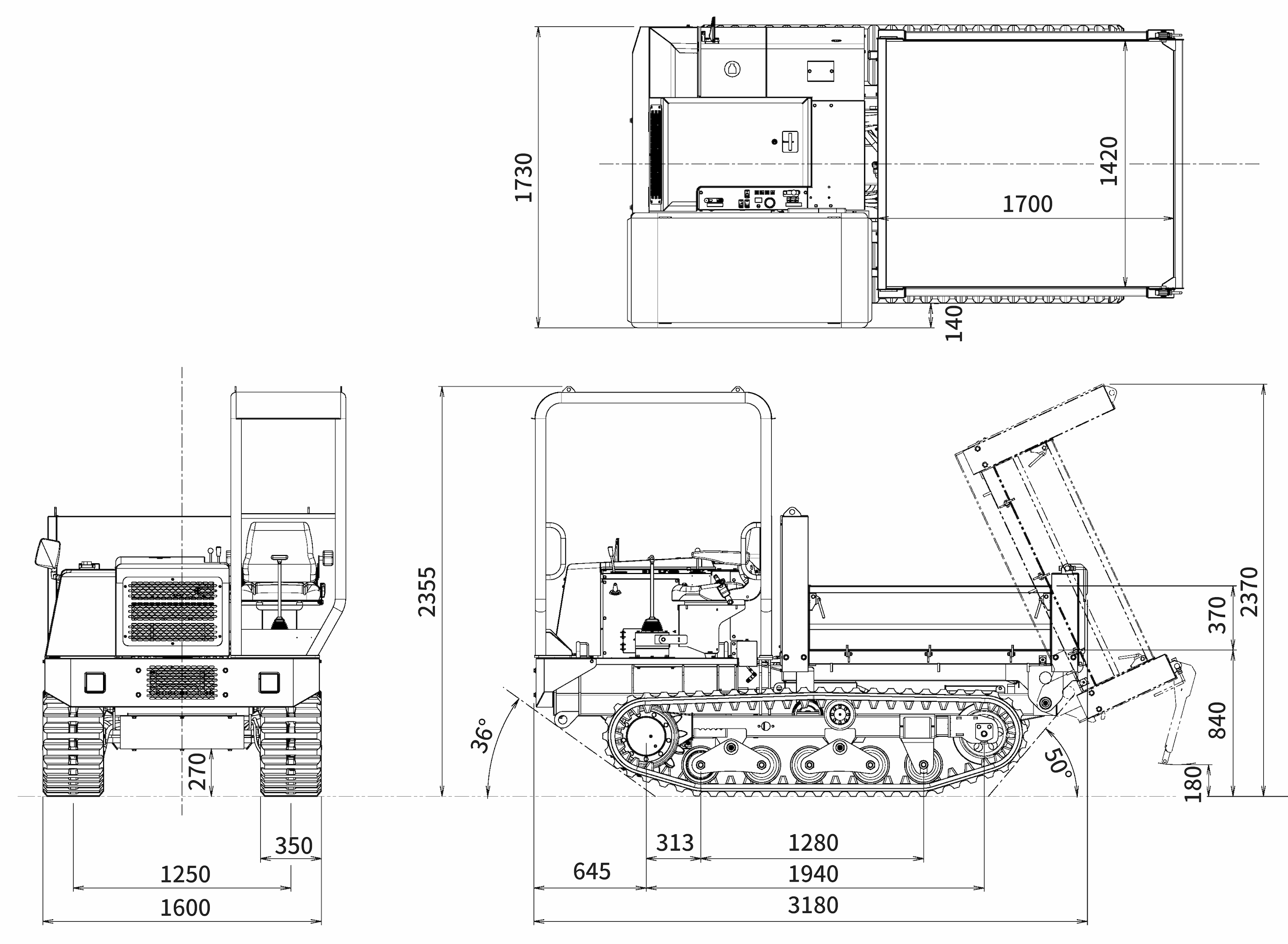

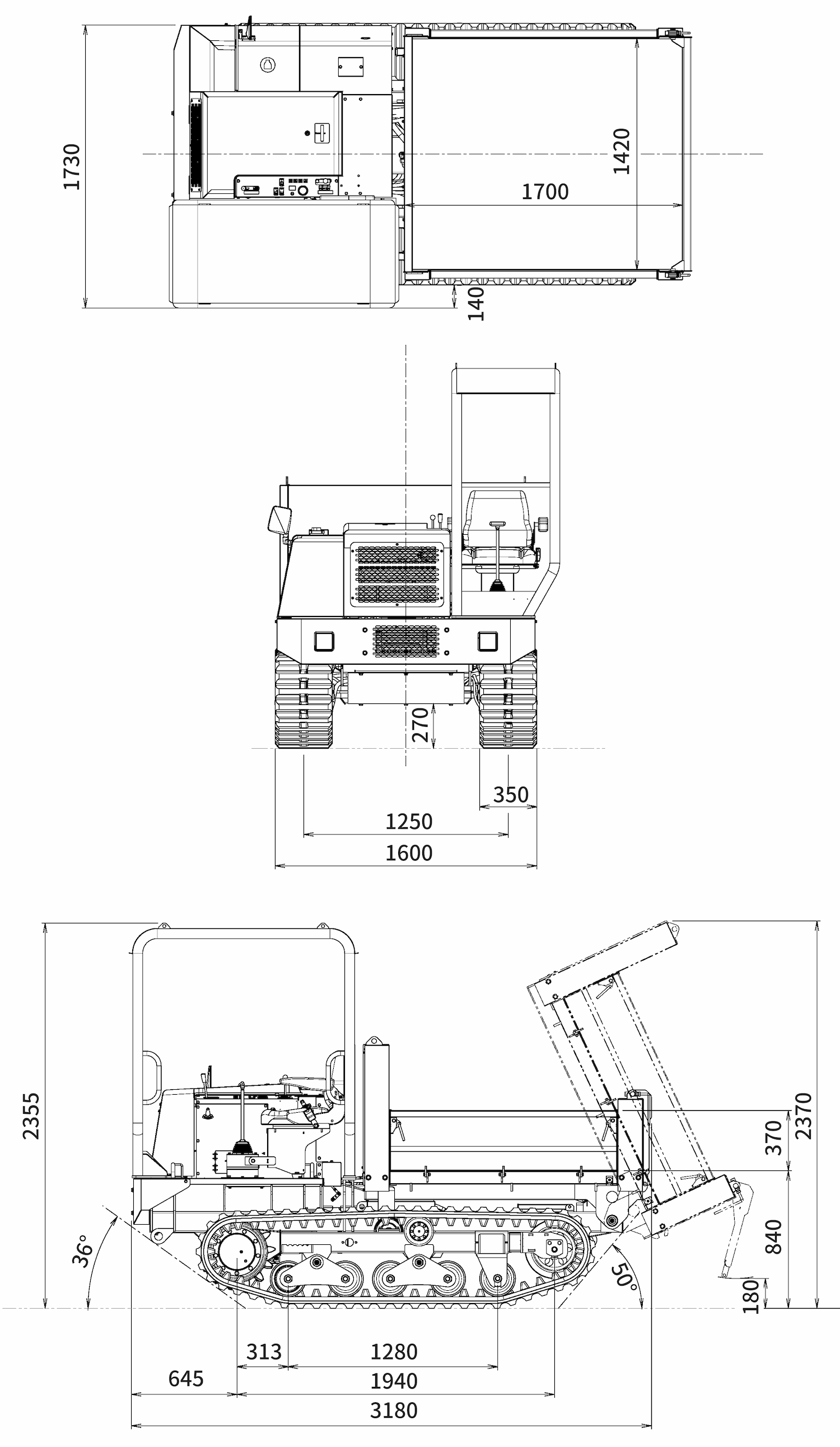

Dimensions
Downloads SPEC SHEET DOWNLOAD
Feature
Enhancing Comfort and Safety in Reverse Operations with the ‘Reverse Reclining Seat’
The Reverse Reclining Seat maximizes visibility and operability, even in tight workspaces. It improves safety during reverse maneuvers while providing a comfortable posture for effortless operation. Perfect for precision-demanding environments, it delivers exceptional control and boosts efficiency.

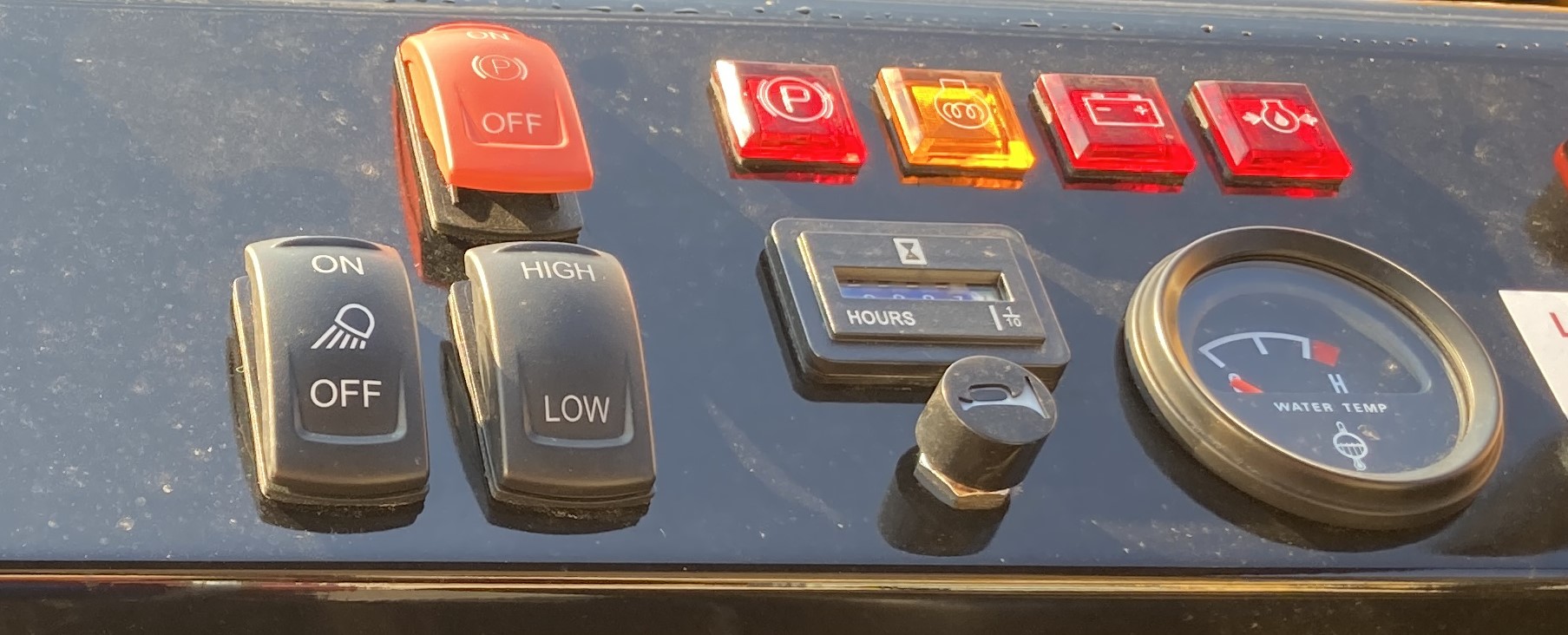

Effortlessly Control Power and Speed with the Manual 2-Speed Selector Switch!
Equipped with a 2-pump, 2-motor system (dual-speed), this machine delivers an exceptional balance of power and speed in any environment. Conquer challenging terrains with robust traction while ensuring smooth and swift movement on flat work
sites. The manual switch operation is straightforward, allowing you to easily adjust and achieve optimal performance based on the
demands of your work site!
sites. The manual switch operation is straightforward, allowing you to easily adjust and achieve optimal performance based on the
demands of your work site!
Optimized Control Layout for Comfortable and Efficient Operation by Anyone!
All control instruments are centrally arranged for intuitive handling, ensuring a seamless operation experience. The streamlined layout minimizes unnecessary movements, significantly reducing
operator fatigue during work. Designed for both seasoned professionals and beginners, it allows smooth operation without
the need to shift your focus. This professional-grade design strikes the perfect balance between comfort and performance,
even during extended hours of operation!
operator fatigue during work. Designed for both seasoned professionals and beginners, it allows smooth operation without
the need to shift your focus. This professional-grade design strikes the perfect balance between comfort and performance,
even during extended hours of operation!
Maintenance
Easing regular maintenance
Filters, batteries, and other components are centrally arranged for easy maintenance.
