| Performance | Max Load | 2,000 kg |
|---|---|---|
| Travel Speed (High/Low) | 7.0 / 5.0 km/h | |
| Ground Pressure (Empty/Laden) | 31.1 / 45.5 kPa | |
| Machine Dimension and Weight | Operating Weight | 4,315 kg |
| Overall Length | 4,030 mm | |
| Overall Width | 1,590 mm | |
| Overall Height | 2,250 mm | |
| Minimum Ground Clearance | 200 mm | |
| Crawler Width | 350 mm | |
| Mast | Maximum Lifting Height | 3,000mm |
| When Mast Descending | 2,135 mm | |
| Tilt Angle (Forward Tilt/Backward Tilt) | 6 / 12° | |
| Fork | Shape (Length/Width/Thickness) | 1,070 / 120 / 40 mm |
| Standard Lifting Height | 3,000 mm | |
| Engine | Name | KUBOTA V2403 |
| Nominal Output | 39.0 kW / 2,200 rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 77 L |
| Hydraulic Oil Tank Capacity | 66 L | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MFD-20-VD |
| Name and Type of Specified prime mover | KUBOTA V2403-CR-TI-YDN-EF04 | |
| Emission Standard | Off-Road Law 2014 Regulations | |
| Tier 4 Final / EU Stage IV |
| Performance | Max Load | 4,409 lbs |
|---|---|---|
| Travel Speed (High/Low) | 4.3 / 3.1 mph/h | |
| Ground Pressure (Empty/Laden) | 4.5 / 6.6 psi | |
| Machine Dimension and Weight | Operating Weight | 9,513 lbs |
| Overall Length | 13’3″ | |
| Overall Width | 5’3″ | |
| Overall Height | 7’5″ | |
| Minimum Ground Clearance | 8″ | |
| Crawler Width | 14″ | |
| Mast | Maximum Lifting Height | 9′ 10″ |
| When Mast Descending | 7’1″ | |
| Tilt Angle (Forward Tilt/Backward Tilt) | 6 / 12° | |
| Fork | Shape (Length/Width/Thickness) | 3’7″ x 5″ x 2″ |
| Standard Lifting Height | 9’11” | |
| Engine | Name | KUBOTA V2403 |
| Nominal Output | 53HP / 2,200 rpm | |
| Fuel Used | Diesel | |
| Tank Capacity | Fuel Tank Capacity | 20.3 gal (US) |
| Hydraulic Oil Tank Capacity | 17.4 gal (US) | |
| DEF Tank Capacity | – | |
| Off-Road Law Emission Regulation Notification and Standards | Name and Model of The non-road special motor vehicle | MOROOKA MFD-20-VD |
| Name and Type of Specified prime mover | KUBOTA V2403-CR-TI-YDN-EF04 | |
| Emission Standard | Off-Road Law 2014 Regulations | |
| Tier 4 Final / EU Stage IV |

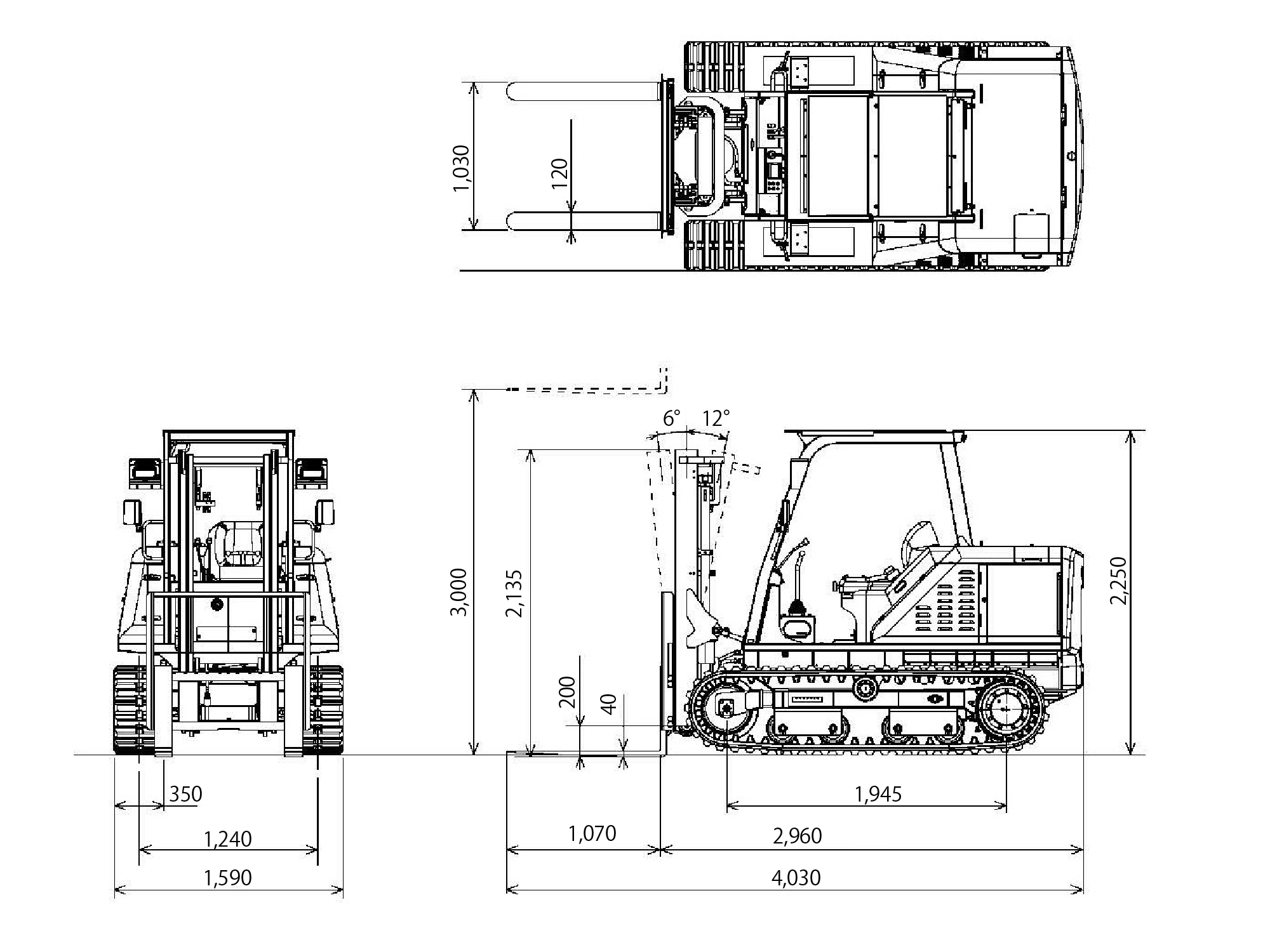

Dimensions
unit:mm
Feature
High performance movement and excellent traction
Thick, seamless rubber tracks provide outstanding durability! The rubber crawler is driven by The HST (Hydro Static Transmission) system. Hydraulic drive transmission provides smooth movement.The MFD-20 has achieved high running performance on rough terrain by increasing the minimum ground clearance to 200mm.
Warning lamps and LCD monitor are placed centrally on the front side of the operator’s seat.
Warning lamps and LCD monitors are centrally located in front of the operator’s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, and engine speed meter, as well as the lighting of warning lamps when there is an abnormality with the vehicle, can now be easily checked.
Simple and comfortable operation
Lifting and lowering the fork and tilting operations is the same feeling as an original forklift. Traveling operations can be easy with Morooka’s unique one-lever system.
Maintenance
No need for urea water
The engine mounted on the MFD-20 maintains high environmental performance. It also does not require a supply of urea water, making daily maintenance easier.
Improved maintainability
Each component is arranged for efficient servicing and maintenance. The large opening cover is designed for smooth inspection and maintenance, such as refueling and battery replacement.
Equipped with “drawbar”
The drawbar can be used for escaping the machine when it cannot run and transportation purpose.
*Do not use for towing or towed operations.
Safety
JIS-compliant protective structure “Polycarbonate composite top panel specification”
JIS-compliant head guard structure with polycarbonate top panel allows for improved safety and visibility.
Equipped with “parking brake”
The engine cannot be started unless the parking brake is turned on, which prevents unintended operation after the engine has started.
Equipment for safe working
Reinforced ribbed undercover protects the machine from rough road thrust.
LED head lights at both sides of the machine can work safer in nighttime and dark places.
