Performance Travel Speed (High/Low)
Ground Pressure
Machine Dimension and Weight Machine Weight 8,600 kg
Overall Length (Folded) 8,050 (5,050) mm
Overall Width 2,400 mm
Overall Height 2,750 mm
Minimum Ground Clearance
Crawler Width
Transport Dimension Overall Length for Transportation 5,050 mm
Overall Height for Transportation 2,750 mm
Discharge Conveyor Dimension Conveyor Length 3,000 mm ± 250mm
Conveyor Width 600 mm
Conveyor Setting Height 2,400 mm ± 200mm
Tub Dimension Opening Diameter (Outside/Inside) 2,350 / 1,800 mm
Tub Depth 1,300 mm ± 50mm
Engine Name MITSUBISHI 6D16-TL
Nominal Output 140 kW / 2,200 rpm
Fuel Used Diesel
Tank Capacity Fuel Tank Capacity 173 ℓ
Hydraulic Oil Tank Capacity 183 ℓ
DEF Tank Capacity
Off-Road Law Emission Regulation Notification and Standards Name and Model of The non-road special motor vehicle
Name and Type of Specified prime mover
Emission Standard Tier2 / EU Stage Ⅱ
Performance Travel Speed (High/Low)
Ground Pressure
Machine Dimension and Weight Machine Weight 18,960 lbs
Overall Length (Folded) 26’5″ (16’7″)
Overall Width 7’10”
Overall Height 9′
Minimum Ground Clearance
Crawler Width
Transport Dimension Overall Length for Transportation 16’7″
Overall Height for Transportation 9′
Discharge Conveyor Dimension Conveyor Length 9’10″± 10″
Conveyor Width 24″
Conveyor Setting Height 7’10″± 8″
Tub Dimension Opening Diameter (Outside/Inside) 7’9″ / 5’11”
Tub Depth 4’3″± 2″
Engine Name MITSUBISHI 6D16-TL
Nominal Output 190 HP / 2,200 rpm
Fuel Used Diesel
Tank Capacity Fuel Tank Capacity 45.7 gal (US)
Hydraulic Oil Tank Capacity 48.3 gal (US)
DEF Tank Capacity
Off-Road Law Emission Regulation Notification and Standards Name and Model of The non-road special motor vehicle
Name and Type of Specified prime mover
Emission Standard Tier2 / EU Stage Ⅱ

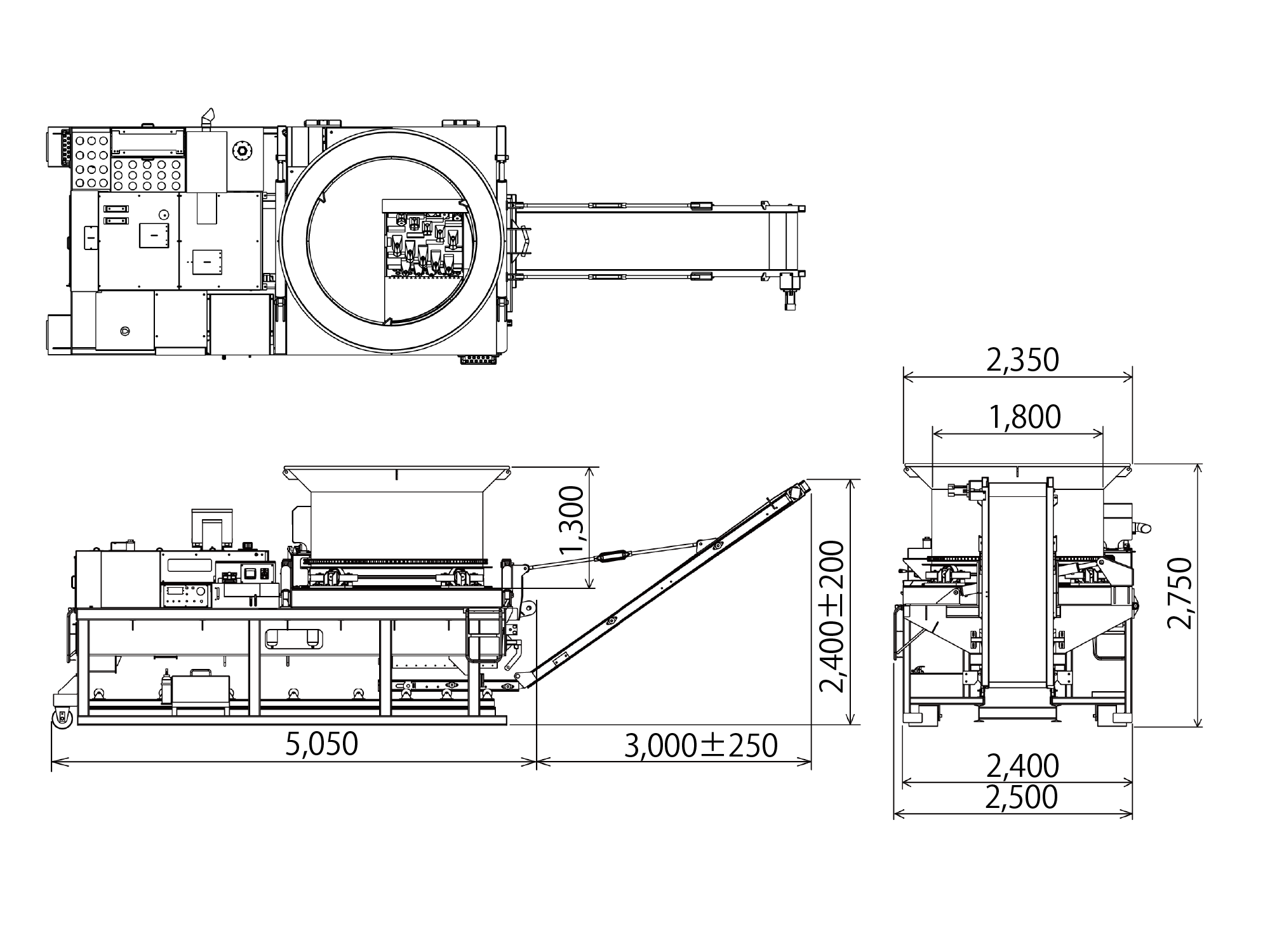

Dimensions

unit:mm
