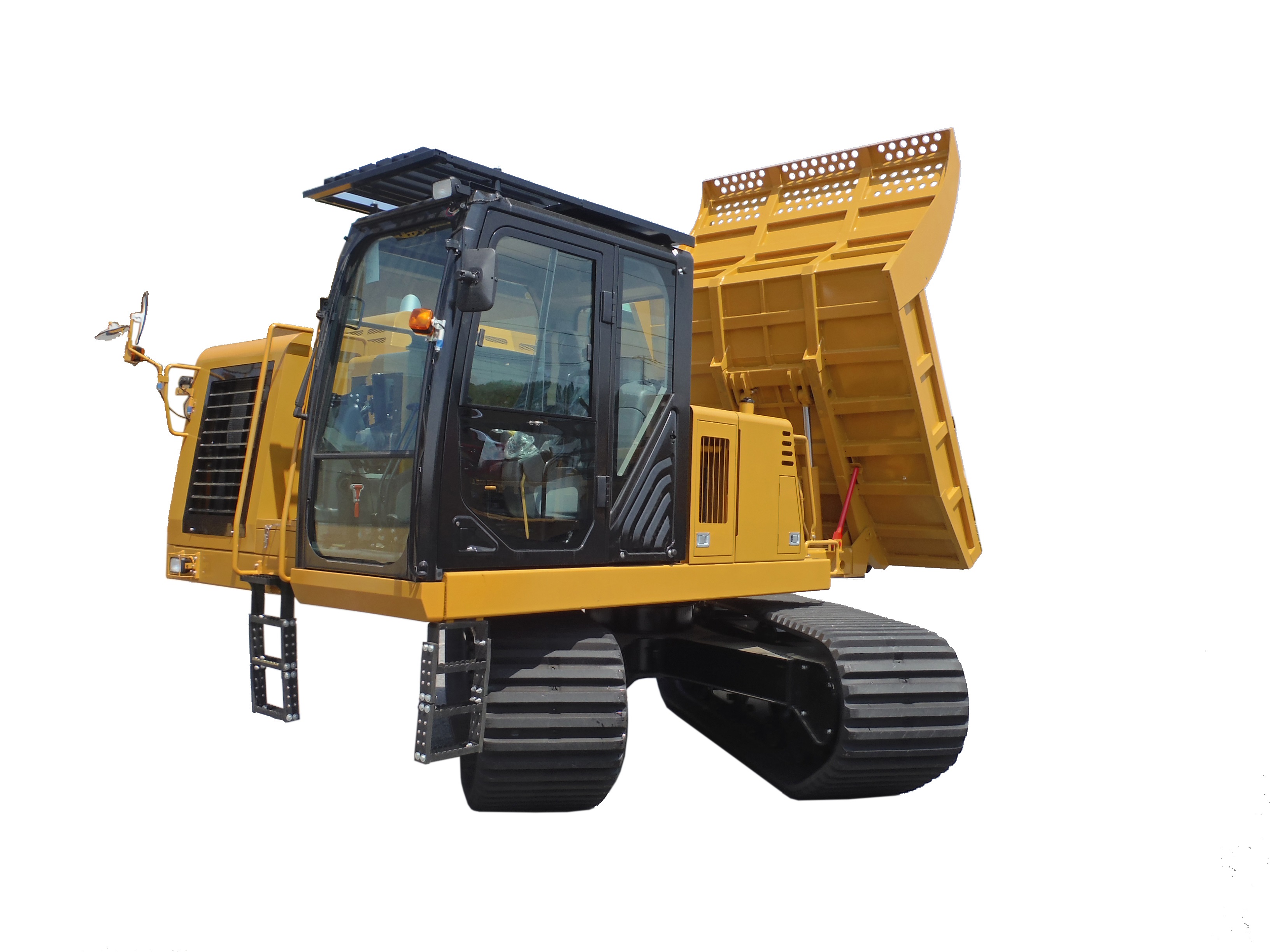

MST-1500VDR
7 ton payload Full-Rotation crawler carrier
≪Full-Rotation Crawler Carrier Series≫
Upper structure rotating 360 degrees.
Minimizes pivot turns efficiently
with a Full-Rotation system.
Realize the efficiency.
Max. Payload : 7,000 kg
Full-Rotation series are “Best for carrying”
Forward driving in any direction.
Morooka Full-Rotation series minimize pivot turns with a fully rotating upper structure.

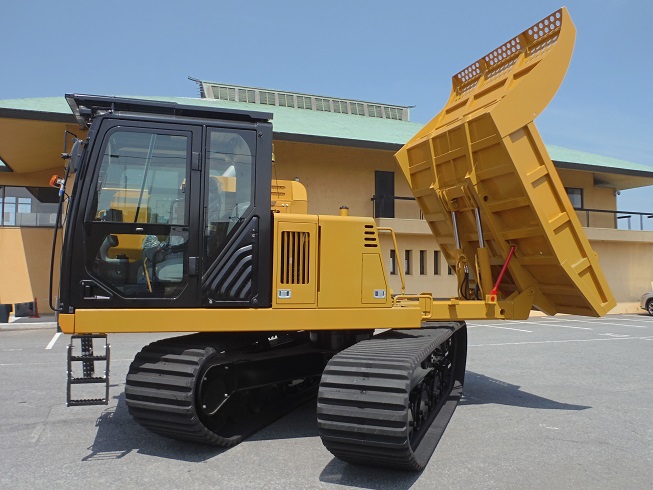

Adding the ability to side dump makes it possible to load and dump anywhere.
Low center of gravity provides excellent stability and loading capacity.
Safe design
Rotary light, 7 inches monitor and back camera are equipped as standard.
Rotary light |
7 inches monitor |
Back camera |
Deluxe cabin and intuitive levers
Equipped with two intuitive travel levers and a side lever to control rotating and dumping.
Cabin for excavator with A/C as standard. (Air-conditioned & spacious room increases the operator’s comfort.)
Two travel levers |
Side lever |
Ease of maintenance
Fuel tank and DEF tank are in the same location, making supplying the fuel easy.
Ease of maintenance thanks to wide opening doors.
![]() |
![]() |
![]() |
Cummins QSB 6.7 Engine
Exhaust emission regulation compliant, EPA Tier 4 Final, EU Stage IV
EPA Tier4 emissions regulation compliant “Cummins QSB 6.7 Engine” installed.
Greatly reduces emissions of PM (particulate matter) and NOx (nitrogen oxides),
Contribute to environmental protection.
Dimension / Specification
MST-1500VDR | |
Machine Weight | 11,800 kg |
Maximum Payload | 7,000 kg |
Loading Capacity (Struck/Heaped) | 2.68 m³ / 4.12 m³ |
Engine | Cummins QSB6.7 Tier 4 Final, EU Stage IV |
Rated Output | 168 kW / 2,200 rpm |
Battery | 12V, 92Ah (5 hour rate) × 2 |
Overall Length | 5,790 mm |
Overall Width | 2,600 mm |
Overall Height | 3,150 mm |
Dump Bed (Length × Width × Height) | 2,750 mm × 2,350 mm × 470 mm |
Dump Angle | 60° |
Ground Clearance | 560 mm |
Slew Radius | 3,370 mm |
Crawler Width | 700 mm |
Drive System | HST |
Travel Speed (Lo/Hi) | 6.1 / 8.6 km/h |
Ground Pressure (Empty) | 27.6 kPa |
Structure | Cabin, ROPS / FOPS II |
Fuel Tank Capacity | 200L |
Travel Lever Type | 2 levers |
Dump Bed Type | Scoop End |
