| Performance | Maximum Payload | 4,000 kg |
|---|---|---|
| Travel Speed (High/Low) | 11.5 / 7.8 km | |
| Ground Pressure （Empty /Laden） | 23.1 / 40.3 kPa | |
| Machine Dimension and Weight | Operating Weight | 5,400 kg |
| Overall Length | 5,040 mm | |
| Overall Width | 2,100 mm | |
| Overall Height | 2,520 mm | |
| Minimum Ground Clearance | 420 mm | |
| Crawler Width | 500 mm | |
| Crawler Outer Width | – | |
| Dump Body | Dump Shape | Flat Bed |
| Length x Width | 2,950 x 1,790 mm | |
| Engine | Name | KUBOTA V3307 |
| Nominal Output | 52.5 kW / 2,600 rpm | |
| Fuel Used | Fuel | Diesel |
| Fuel Tank Capacity | 105ℓ | |
| Tank Capacity | Hydraulic Oil Tank Capacity | 85ℓ |
| Off-Road Law Emission Regulation Notification and Standards | Model Name of Non-road Special Vehicle | Morooka MST40-CS5D |
| Type Name of Specified prime mover | Kubota V3307-CR-T-YDN | |
| Emission Standard | Tier 4 Final / EU Stage IV |
| Performance | Maximum Payload | 8,818 lbs |
|---|---|---|
| Travel Speed (High/Low) | 7.1 / 4.8 mph | |
| Ground Pressure （Empty /Laden） | 3.3 / 5.8 Psi | |
| Machine Dimension and Weight | Operating Weight | 11,905 lbs |
| Overall Length | 16’6″ | |
| Overall Width | 6’11” | |
| Overall Height | 8’3″ | |
| Minimum Ground Clearance | 17″ | |
| Crawler Width | 20″ | |
| Crawler Outer Width | – | |
| Dump Body | Dump Shape | Flat Bed |
| Length x Width | 9’8″ x 5’10” | |
| Engine | Name | KUBOTA V3307 |
| Nominal Output | 71 HP / 2,600 rpm | |
| Fuel Used | Fuel | Diesel |
| Fuel Tank Capacity | 27.7 gal(US) | |
| Tank Capacity | Hydraulic Oil Tank Capacity | 22.5 gal(US) |
| Off-Road Law Emission Regulation Notification and Standards | Model Name of Non-road Special Vehicle | Morooka MST40-CS5D |
| Type Name of Specified prime mover | Kubota V3307-CR-T-YDN | |
| Emission Standard | Tier 4 Final / EU Stage IV |

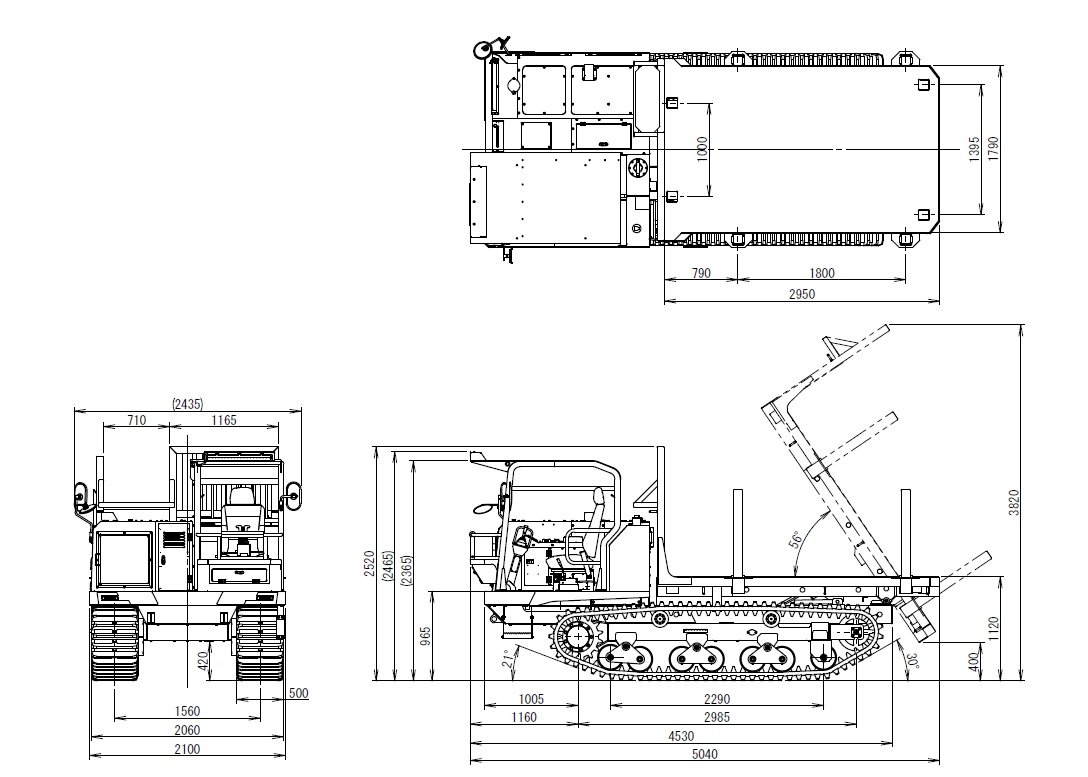

Dimensions
unit:mm
