MRC-3000
| Maximum Processing Diameter | 450mm | |
Tough undercarriage & Compact design |
|
Thick, seamless rubber tracks provide outstanding durability! The rubber crawler is driven by The HST (Hydro Static Transmission) system. Hydraulic drive transmission provides smooth movement.
|
Specialized for crushing large diameter and long material! |
|
The greatest advantage of the horizontal grinder is that long materials can be crushed quickly. The maximum processing diameter is 450 mm, and the cutter rotation speed and material feed speed can be set arbitrarily, so that high-quality wood chips for biomass fuel can be produced in an appropriate size.
|
Automatic reverse system |
|
If the cutter drive pressure or cutter rotation speed drop rate falls below the set value during crushing, the feed roller and feed conveyor automatically reverse to prevent material clogging. With this function, materials can be crushed smoothly.
|
Choice of crushing blade and screen size |
|
Crushing blades and screens can be selected from several types according to the size and shape of the material to be produced.
|
Improvement in maintainability
|
|
Each components are arranged for efficient inspection and maintenance. The front grille which has a large opening, making it easy to perform inspections and maintenance.
|
Emergency stop switch |
|
3 emergency stop switches are installed on both side faces of the product body and operation console.
*Do not use the emergency stop switch except in an emergency |
Remote control |
|
Equipped with a remote control for crushing operation. Operations such as starting and stopping material feed and stopping the engine in an emergency can be performed from the operator’s cab of the hydraulic excavator that feeds materials, reducing the user’s burden.
|
?Specification / Dimensions
|

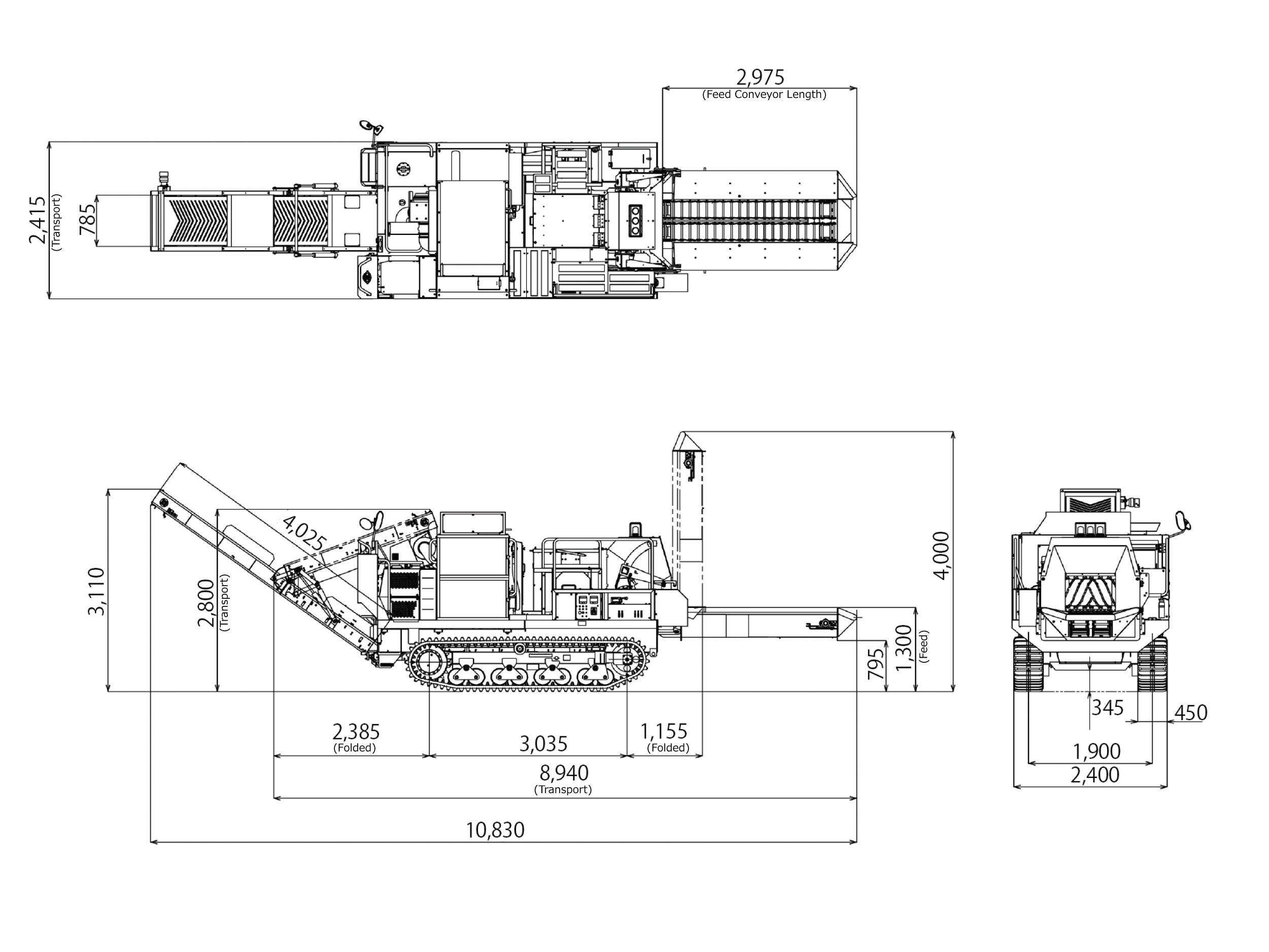

?Dimensions |
 |
| Specifications | |||
| MODEL | MRC-3000 | ||
| Dimension & Performance | Travel Speed(High/Low) | kph | 3.0/2.0 |
| Ground pressure | kPa | 59.1 | |
| Machine Weight( | kg | 13,700 | |
| Overall Length (Conveyor folded) | mm | 10,830(6,575) | |
| Overall Width | mm | 2,415 | |
| Overall Height | mm | 3,110 | |
| Ground Clearance | mm | 345 | |
| Crawler Width | mm | 500 | |
| Overall Length (Transport) | mm | 8,940 | |
| Overall Height (Transport) | mm | 2,800 | |
| Conveyor Dimension | Discharge Conveyor Length | mm | 4,025 |
| Feed Conveyor Length | mm | 2,975 | |
| Conveyor Ground Clearance | mm | 3,110 | |
| Feed Dimension & Crushing Blade | Maximum Processing Diameter | mm | 450 |
| Mill-box opening (Width × Height) | mm | 770 × 540 | |
| Crushing Blade | Cutter Blade, 6pcs | ||
| Engine | Name | Caterpillar C7.1 | |
| Nominal Output | kW(HP)/rpm | 186.5(250)/2,200 | |
| Fuel | Diesel | ||
| Tank Capacity | Fuel Tank Capacity | ℓ | 395 |
| DEF Tank Capacity | ℓ | 32 | |
| Emission Standard | Tier4 Final/ EU Stage Ⅳ | ||
