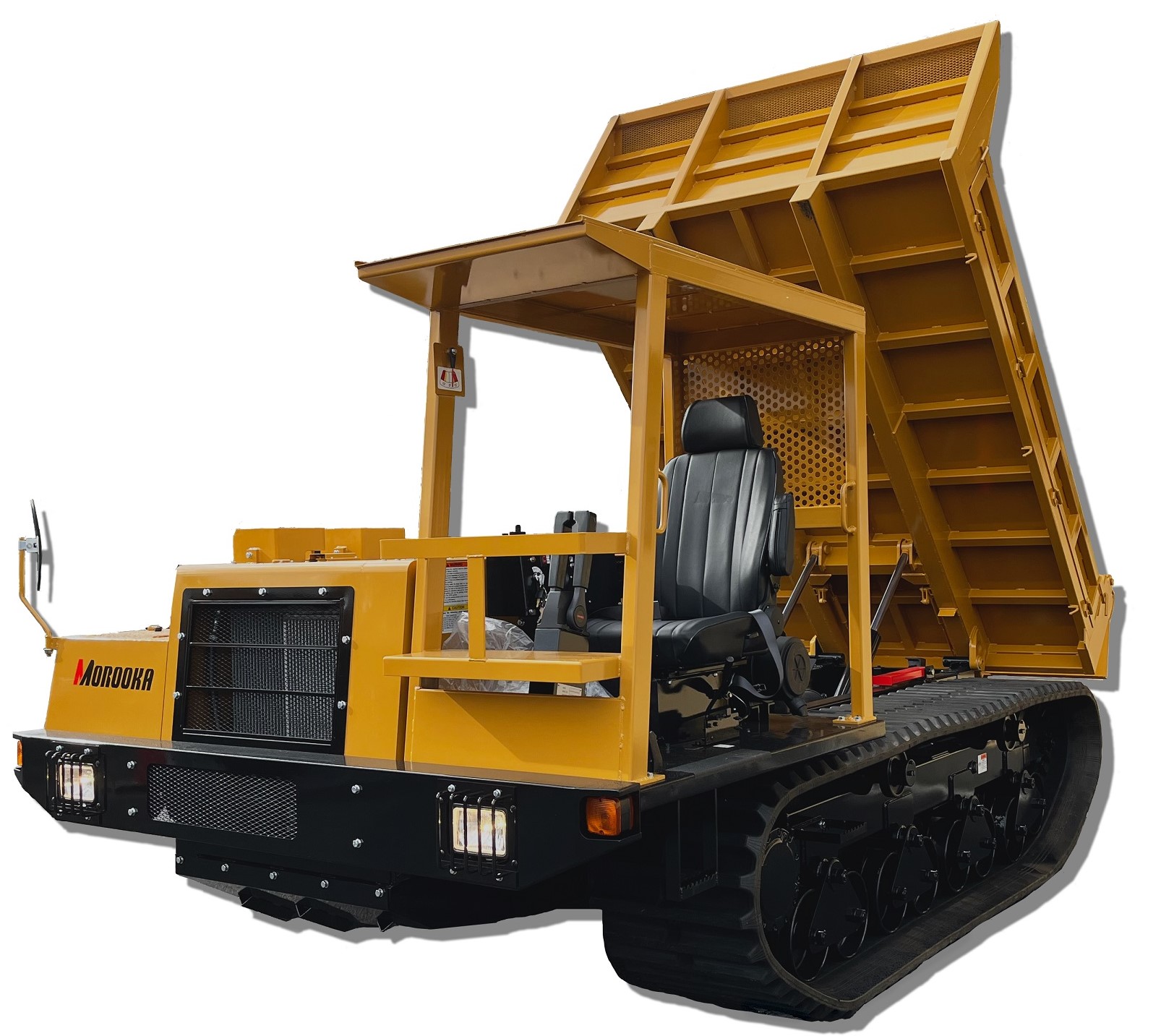

5 ton payload crawler carrier



800t2Compact & Sharp turning.

Comfortable operation with

simple travel levers.


Max. payload : 4,800kg

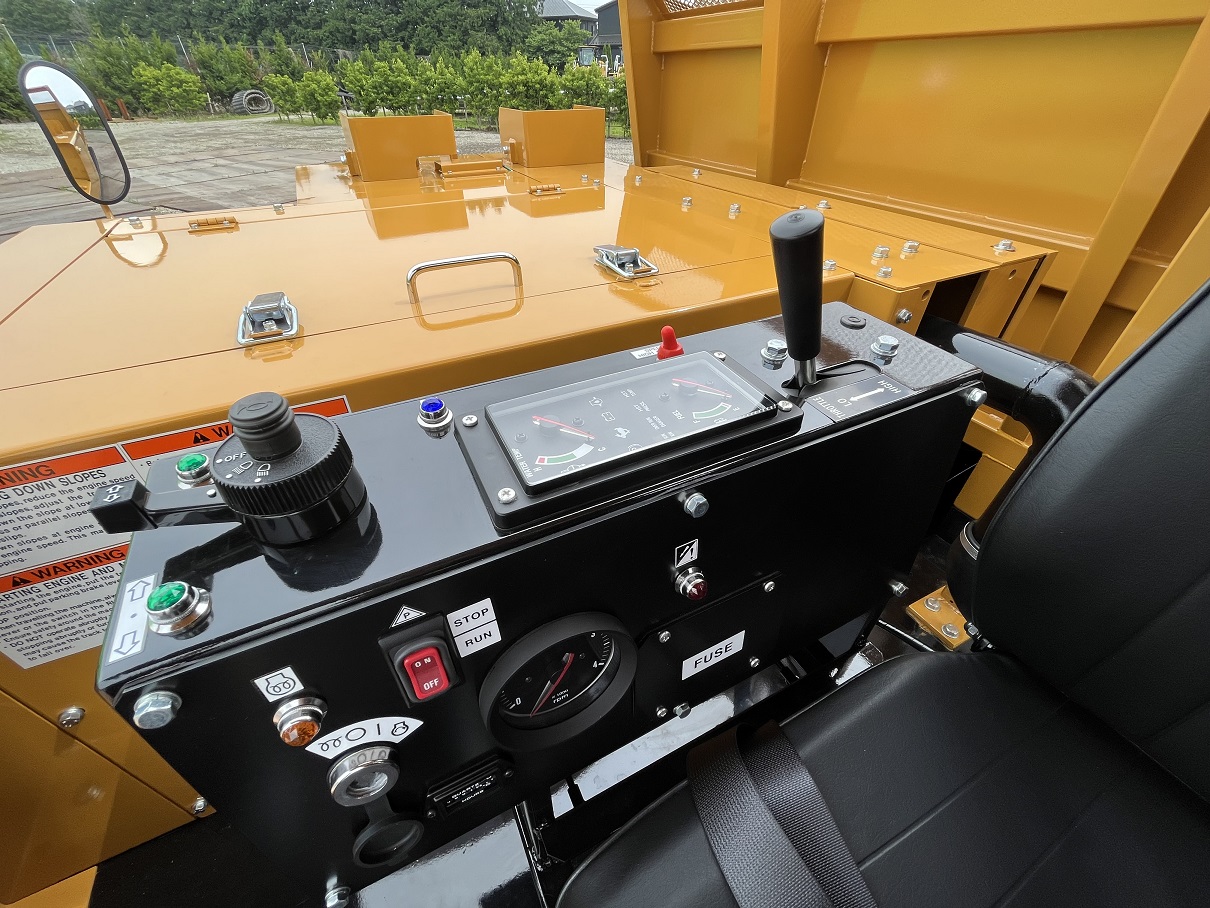

Simple & easy to understand gauges and console panel

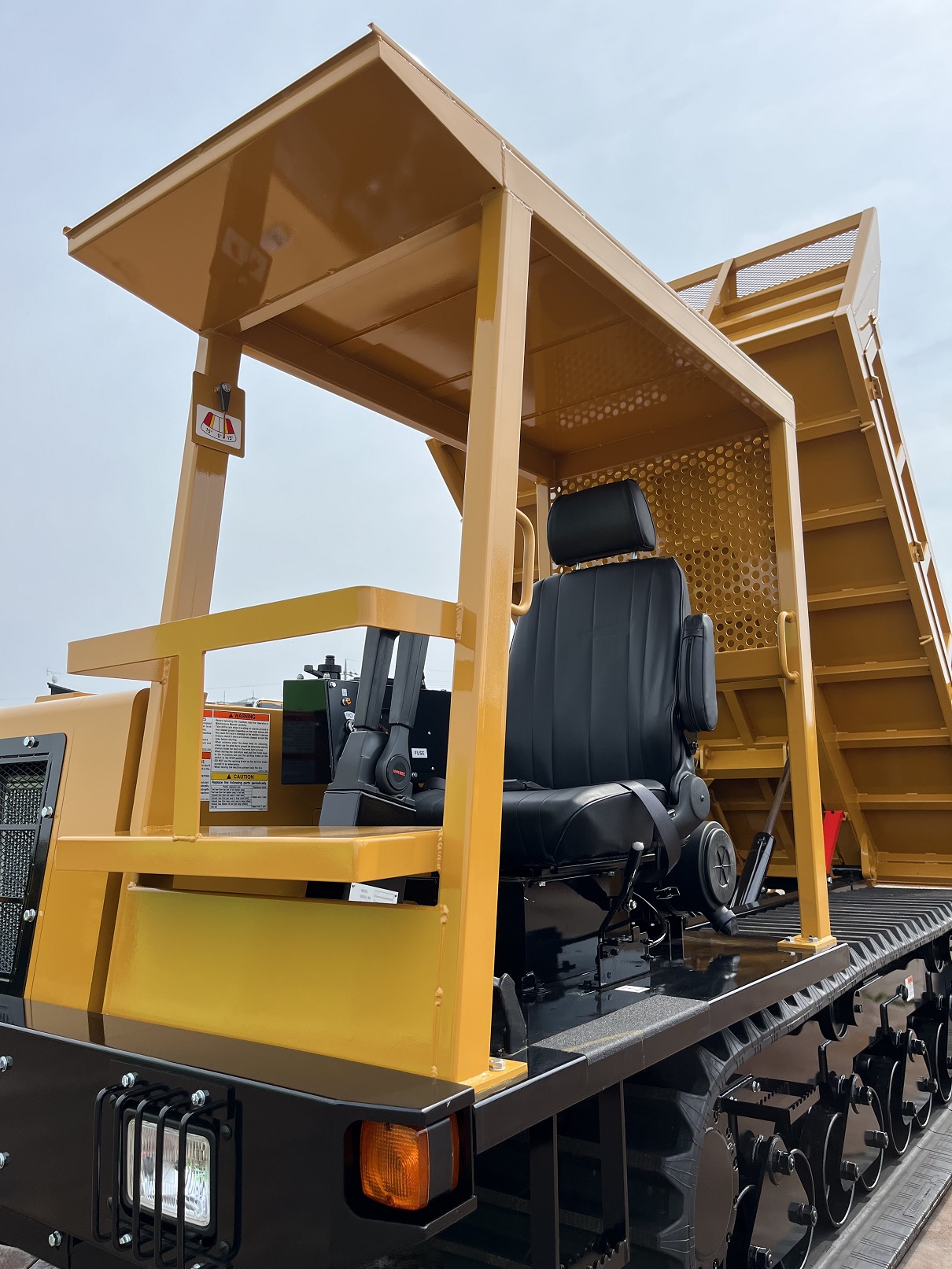

A wide field of view is given thanks to the spacious operator space.

Adjustable seat with armrest enhance the operator’s comfort and reduce fatigue.


IMG_0878 IMG_0823

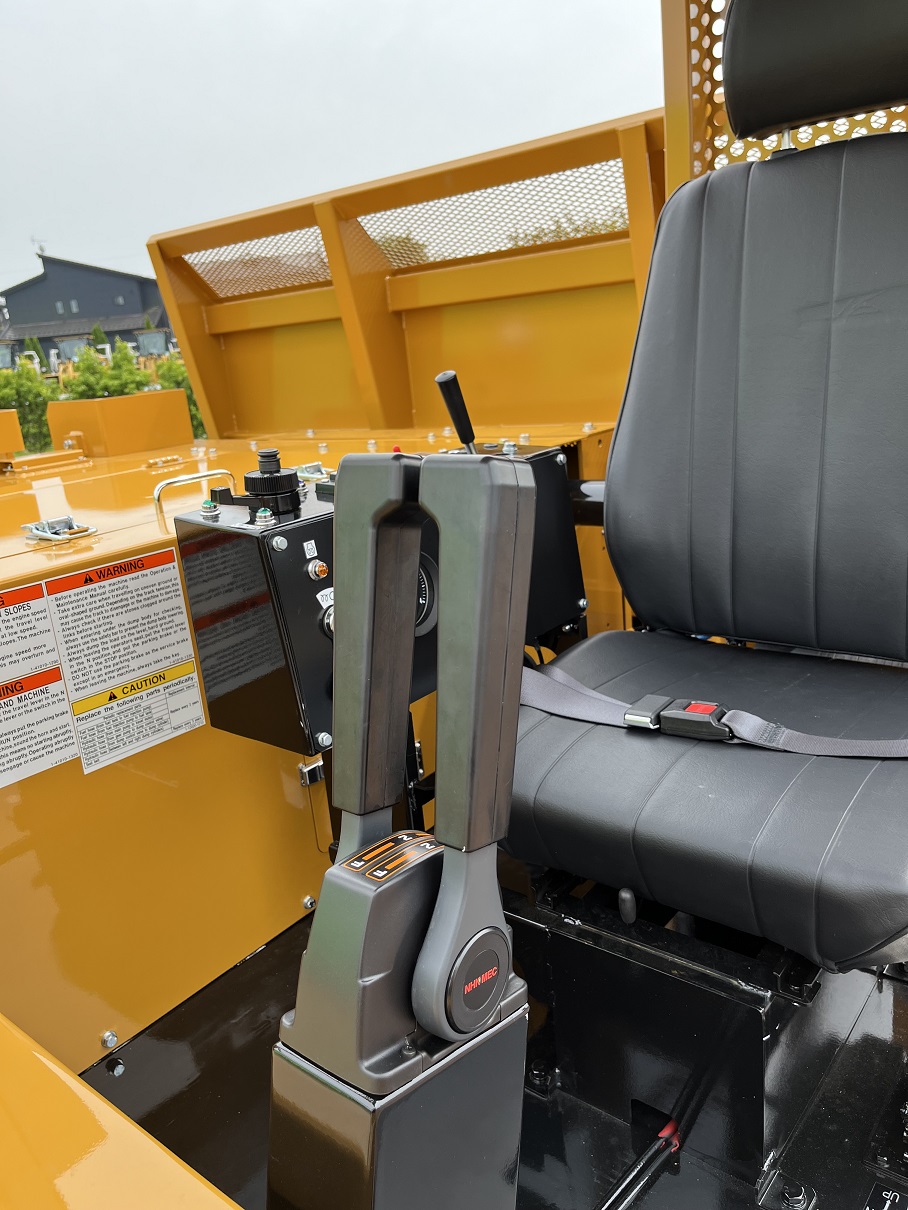

Intuitive simple travel lever

Travel levers powered by hydraulic pilot control, provide intuitive & sophisticated operation.


Hydraulic travel levers

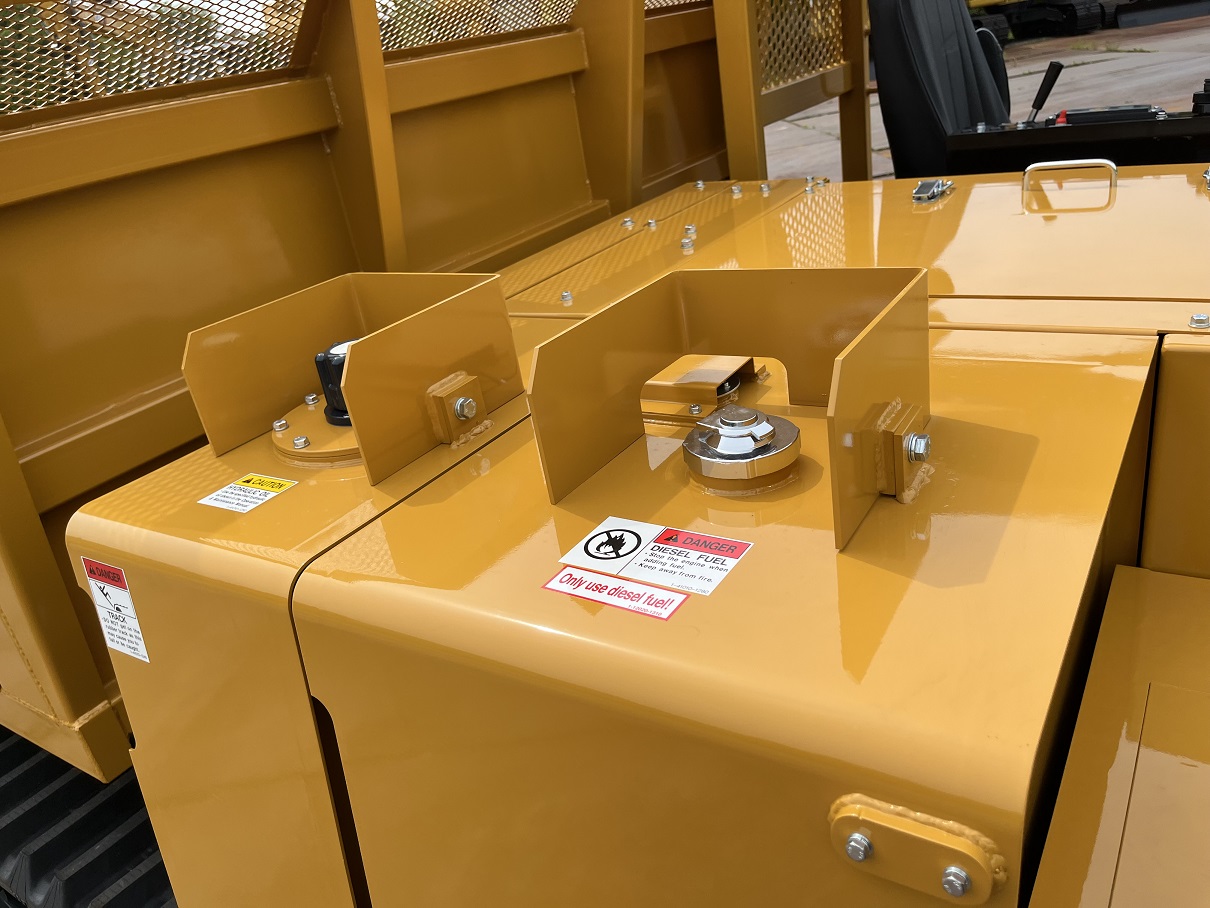

Accessibility to Fuel tank and HST tank

Fuel tank and HST tank can be accessed through the ground level location.

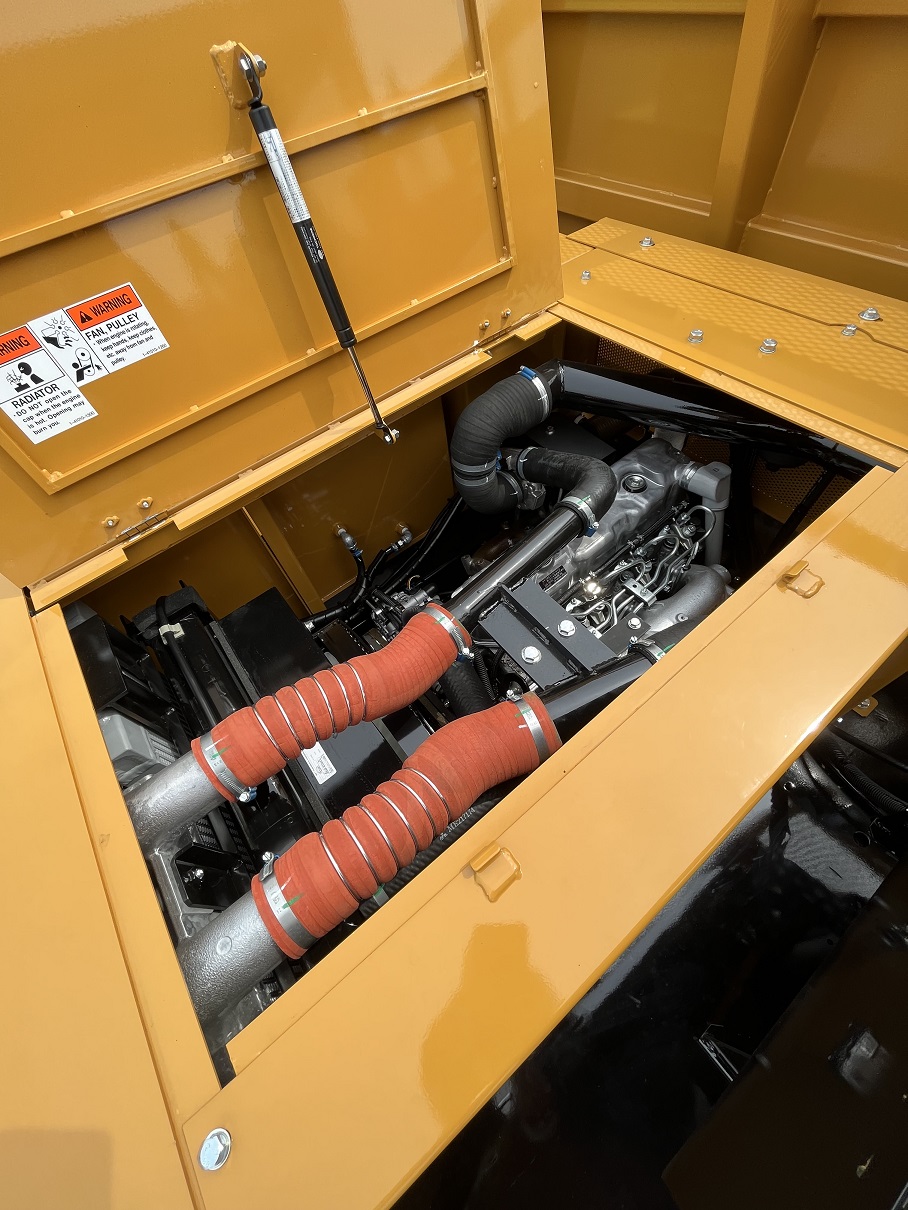

Mitsubishi 4D34 Tier2 Engine

EPA Tier 2 / EU Stage Ⅱ compliant engine mounted

The engine mounted on the model is Tier2 / EU Stage Ⅱ level engine that is suitable for the region where Ultra low sulfur diesel fuel is not available.




Specification / Dimensions



Maximum Payload4,800kg
Loading Capacity (Struck / Heaped)1.82/2.95m³
Speed (High / Low)0~11.0 / 0~8.3km/h
Ground Pressure (Empty / Laden)22.5/39.1 kPa
Machine Weight6,570kg
Overall Length4,870mm
Overall Width2,410mm
Overall Height2,300mm
Min. Ground Clearance400mm
Crawler Width600mm
Dump Bed (Inner)
Length × Width × Height
3,000 × 2,000 × 300mm
Engine NameMitsubishi 4D34
Nominal Output81kW/2,200min-1
Fuel Tank Capacity130ℓ
Hydraulic Oil Tank Capacity-
DEF Tank Capacity-
Emission StandardTier2
EU Stage Ⅱ
