MST-600VD

3.8 ton payload compact crawler carrier

new600VD





High performance

  on confined jobsites

    due to its compact body.



















Max. payload : 3,800 kg

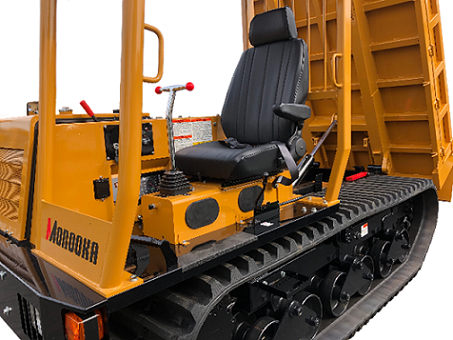

Excellent visibility and operability

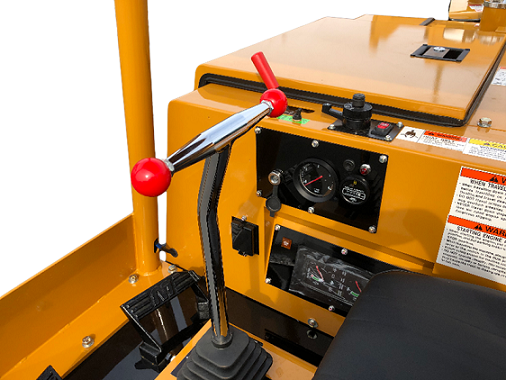

Easy operation thanks to high visibility and single hydraulic travel lever.
MST-600VD(2)MST-600VD_Travel lever

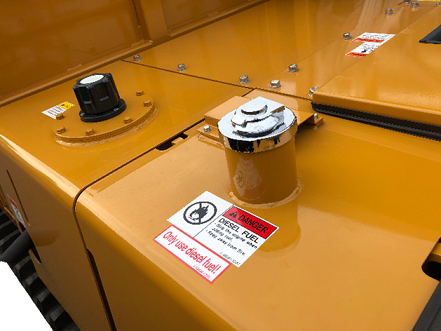

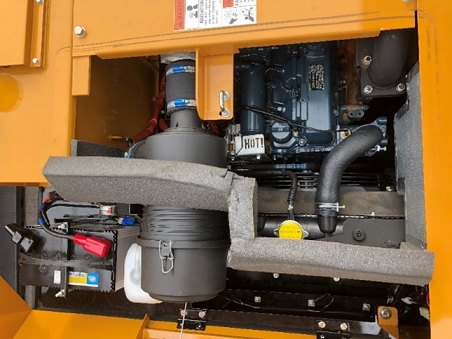

Easy daily maintenance

Easy and efficient maintenance of engine, accessories around the engine, and tanks of fuel and hydraulic oil with ease-of-access.
MST-600VD(3) MST-600VD(4)

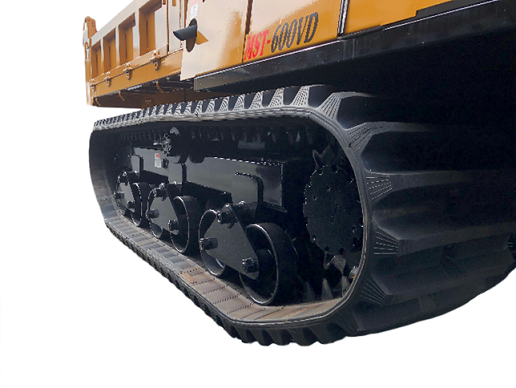

Wide and durable 500 mm crawlers for safe and stable operation

The MST-600VD has low ground pressure and this helps it operate even on rough terrain.

MST-600VD_undercarriage







Compact body and functions for operator’s safety

2,100 mm width enables operator to work on confined job sites.

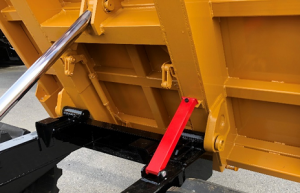

The ROPS canopy assures operator safety and the safety bar makes sure the dump bed stays up.

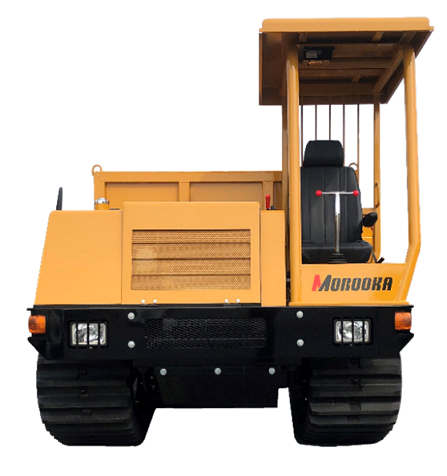

MST-600VD(5)MST-600VD_Safety bar

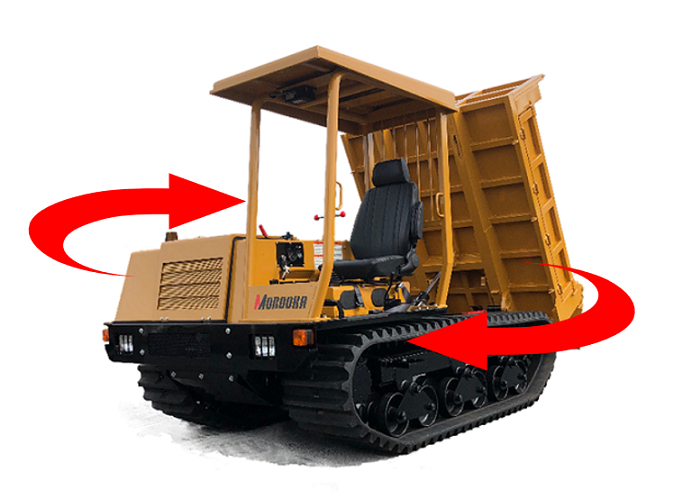

Pivot turn

Travel motors on both right and left sides enable you to take pivot turns and help you to work on confined job sites, just like other model in Morooka crawler carrier series.
MST-600VD(6) pivot turn




Kubota V3307 Engine

Highly proven and reputable Japan made engine (Kubota V3307) has been mounted. Low fuel consumption and easily maintainable engine for powerful and stable operation.

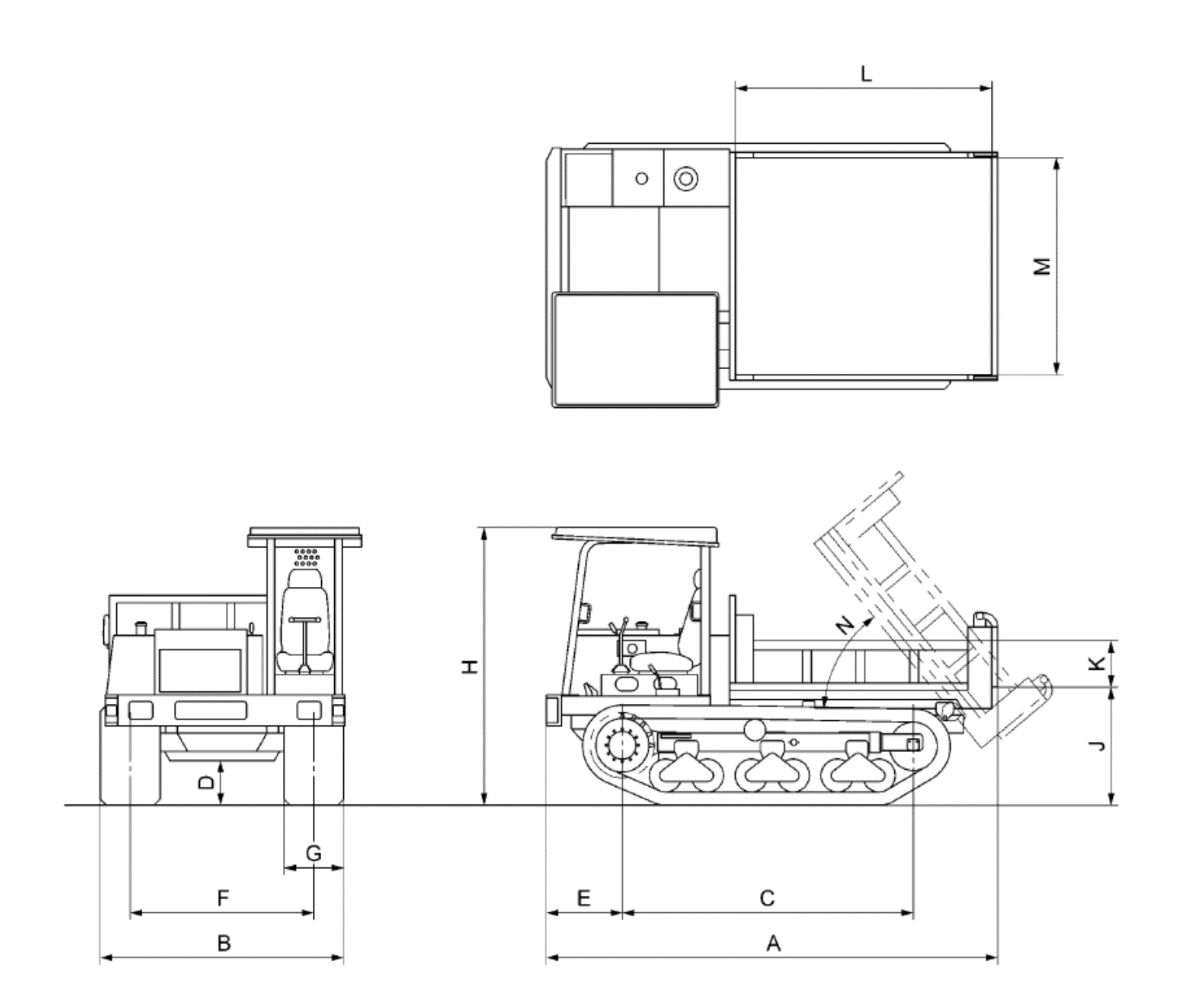

Dimension / Specification

MST-600VD_drawing

MST-600VD
Machine Weight4,400 kg
Maximum Payload3,800 kg
Loading Capacity (Struck/Heaped)1.28 m³ / 1.95 m³
Engine Kubota V3307
Tier 4 Interim, EU Stage IIIA
Rated Output54.6 kW / 2,200 rpm
Battery12V, 64Ah
Overall Length3,780 mm
Overall Width2,100 mm
Overall Height2,330 mm
Dump Bed (Length × Width × Height)2,150 mm × 1,700 mm × 360 mm
Dump Angle60°
Ground Clearance350 mm
Slew Radius-
Crawler Width500 mm
Drive SystemHST
Travel Speed (Lo/Hi)7.0 / 10.0 km/h
Ground Pressure (Empty)24.8 kPa
StructureCanopy, ROPS
Fuel Tank Capacity75L
Travel Lever Type2 levers
Dump Bed TypeDrop Side Rear Door
