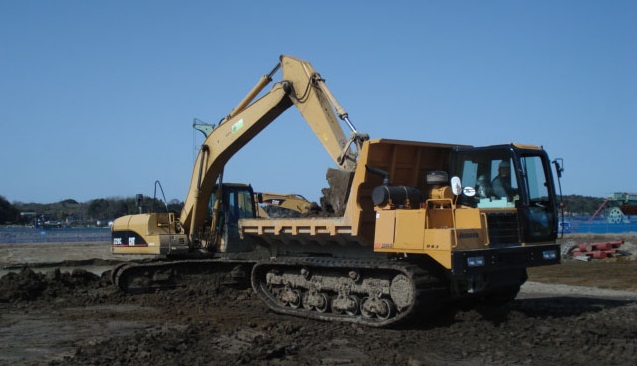

MST-2200VD
11 ton heavy-duty crawler carrier
Heavy-duty carrying capacity.
Work efficiently thanks
to it’s high capacity.
Max. payload : 11,000 kg
Heavy Loading
The MST-2200VD is the carrier for heavy-duty loading with 253 horsepower and a heavy-duty structure.
Intuitive operational levers
Travel levers are easy to grip and contribute to accurate operation.
MOROOKA’s mind – Durable & Robust Understructure
Sprocket is separated into 4 parts.
Therefore, you do not need to take off the whole rubber crawler when replacing them.
Operator’s comfort
Simple & easy to understand gauges help monitor important systems. Users will have a wide field of view thanks to the spacious cabin.
An air-conditioned cabin and adjustable seat enhance the operator’s comfort.
Safe Maintenance
Safety bars are equipped for every unit.
Please set them when you are working under the dump bed.
Cummins QSB 6.7 Engine
Exhaust emission regulation compliant, EPA Tier 4 Final, EU Stage IV
EPA Tier4 emissions compliant “Cummins QSB 6.7 Engine” installed.
Greatly reduces emissions of PM (particulate matter) and NOx (nitrogen oxides),
Helps contribute to environmental protection.
Dimension / Specification
MST-2200VD | |
Machine Weight | 14,100 kg |
Maximum Payload | 11,000 kg |
Loading Capacity (Struck/Heaped) | 3.53 m³ / 5.92 m³ |
Engine | Cummins QSB6.7 Tier 4 Final, EU Stage IV |
Rated Output | 186 kW / 2,000 rpm |
Battery | 12V, 120Ah × 2 |
Overall Length | 6,260 mm |
Overall Width | 2,850 mm |
Overall Height | 3,170 mm |
Dump Bed (Length × Width × Height) | 3,600 mm × 2,450 mm × 400 mm |
Dump Angle | 60° |
Ground Clearance | 480 mm |
Slew Radius | - |
Crawler Width | 750 mm |
Drive System | HST |
Travel Speed (Lo/Hi) | 7.0 / 10.0 km/h |
Ground Pressure (Empty) | 33.2 kPa |
Structure | Cabin, ROPS / FOPS II |
Fuel Tank Capacity | 240L |
Travel Lever Type | 2 levers |
Dump Bed Type | Vessel Rear Door |
